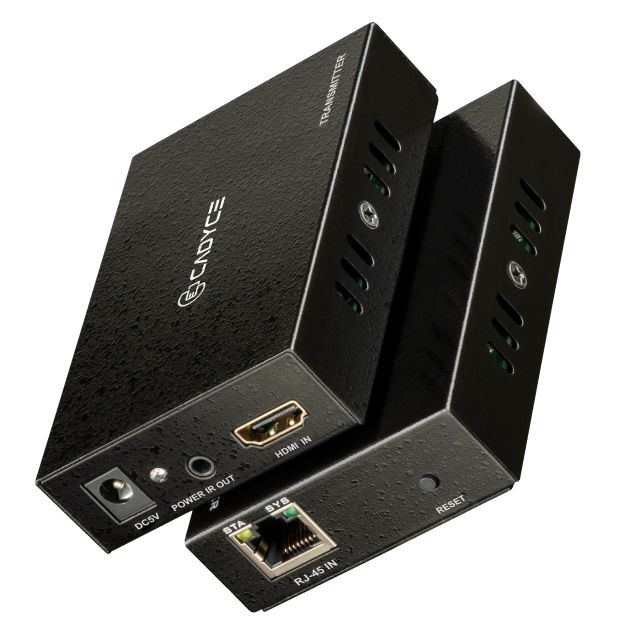

Break the Distance Barrier with the Cadyce CA-HDX120

Traditional HDMI cables are fantastic for short distances but begin to suffer severe signal degradation and quality loss once they pass the 15-meter mark. The Cadyce CA-HDX120 HDMI Extender completely eliminates this limitation. By leveraging reliable TCP/IP network transmission, this device allows you to route pristine high-definition video and audio over massive distances using inexpensive, easy-to-run Ethernet networking cables.

Reliable Full HD Performance for Professional Installations

Whether you are outfitting a large university auditorium or setting up digital menu boards across a sprawling restaurant, the CA-HDX120 ensures your image remains perfect. It fully supports HDMI 1.4 standards and HDCP 1.3 compliance, guaranteeing compatibility with modern media players, PCs, and gaming consoles. The kit includes both the Transmitter (TX) and Receiver (RX) units alongside their respective power adapters, providing a complete, out-of-the-box solution that requires zero software or complex driver installations.

🌟 Key Features of the Cadyce CA-HDX120

• Extreme 120-Meter Range: Transmit your HDMI signal up to an incredible 120 meters (394 feet) without experiencing lag, stutter, or signal dropouts.
• Full HD 1080p Resolution: Enjoy crystal-clear, uncompressed video quality with maximum resolution support of 1920×1080 @ 60Hz.
• Universal Ethernet Compatibility: Highly versatile design works flawlessly with a wide variety of networking cables, including CAT5, CAT5e, CAT6, CAT6a, and CAT7.
• HDCP 1.3 Compliant: Fully supports High-Bandwidth Digital Content Protection, ensuring secure playback of copyrighted material from Blu-Ray players and streaming boxes.
• Durable & Compact Design: The robust metallic housing protects internal components from heat and physical wear, while the compact footprint (100 x 64 x 22mm) allows it to be easily hidden behind TVs or inside server racks.
• True Plug-and-Play: Requires no network configuration, IP assigning, or software downloads. Simply connect your source, run your Ethernet cable to the receiver, and plug into your display.

💼 Applications of the Cadyce CA-HDX120

• Digital Signage & Retail: Push promotional videos from a secure back-office server to multiple high-definition displays located on the busy shop floor.
• Security & CCTV: Route high-definition NVR/DVR security camera feeds to a distant monitoring room without quality loss.
• Corporate & Education: Connect podium laptops to distant ceiling-mounted projectors in large conference halls and lecture theaters using existing in-wall network cabling.
• Home Theaters: Keep your noisy AV receivers, gaming consoles, and PCs hidden in a dedicated media closet while transmitting the signal perfectly to your living room television.

📊 Technical Specifications

Specification	Details
Brand	Cadyce
Model	CA-HDX120
Product Type	HDMI Extender Over Ethernet (Transmitter & Receiver Kit)
Maximum Transmission Distance	120 Meters (394 Feet)
Supported Cable Types	CAT5, CAT5e, CAT6, CAT6a, CAT7
Maximum Video Resolution	Full HD 1080p @ 60Hz
HDMI Version	HDMI 1.4
HDCP Compliance	HDCP 1.3
Power Input Requirement	5V DC, 1A (Per Unit)
Operating Temperature	0°C to 70°C
Operating Humidity	10% ~ 85% RH (No Condensation)
Dimensions (L x W x H)	100 x 64 x 22 mm (Per Unit)
Certifications	CE, FCC
Warranty	1 Year Manufacturer Warranty

📦 Package Contents

• 1 x CA-HDX120 Transmitter (TX) Unit
• 1 x CA-HDX120 Receiver (RX) Unit
• 2 x DC 5V / 1A Power Adapters
• User Manual

❓ Frequently Asked Questions

1. Do I need to buy two of these to make it work?
No, the Cadyce CA-HDX120 is sold as a complete kit. Inside the box, you will receive both the Transmitter (which connects to your source device) and the Receiver (which connects to your display).

2. Can I use a standard Wi-Fi router to extend the signal?
The CA-HDX120 is designed for direct point-to-point connection using a single, unbroken Ethernet cable routed directly between the Transmitter and the Receiver. It is not designed to be routed through standard network switches or routers.

3. Which Ethernet cable gives the best performance?
While the extender supports CAT5e cables, we highly recommend using high-quality, shielded CAT6 or CAT7 cables for maximum stability and to reliably reach the full 120-meter distance without interference.

4. Do both boxes need to be plugged into the wall?
Yes, both the Transmitter unit and the Receiver unit require power. Two 5V DC power adapters are included in the package for this purpose.
